41180041
It is close until the surface reaches 125 Celsius degree and then the switch open. Automatically resetWhen the surface cools off about 5 degrees, the switch automatically close.Opening-closing durability: 10000 times or more (under rated load).General-purpose low cost, compact, large capacity, minute current thermostat.Application: for Household electric appliances, PC, Microwave ovens, Irons, Refrigerators, Electronic oven, Heating unit, Coffeepot, Water heater, etc.

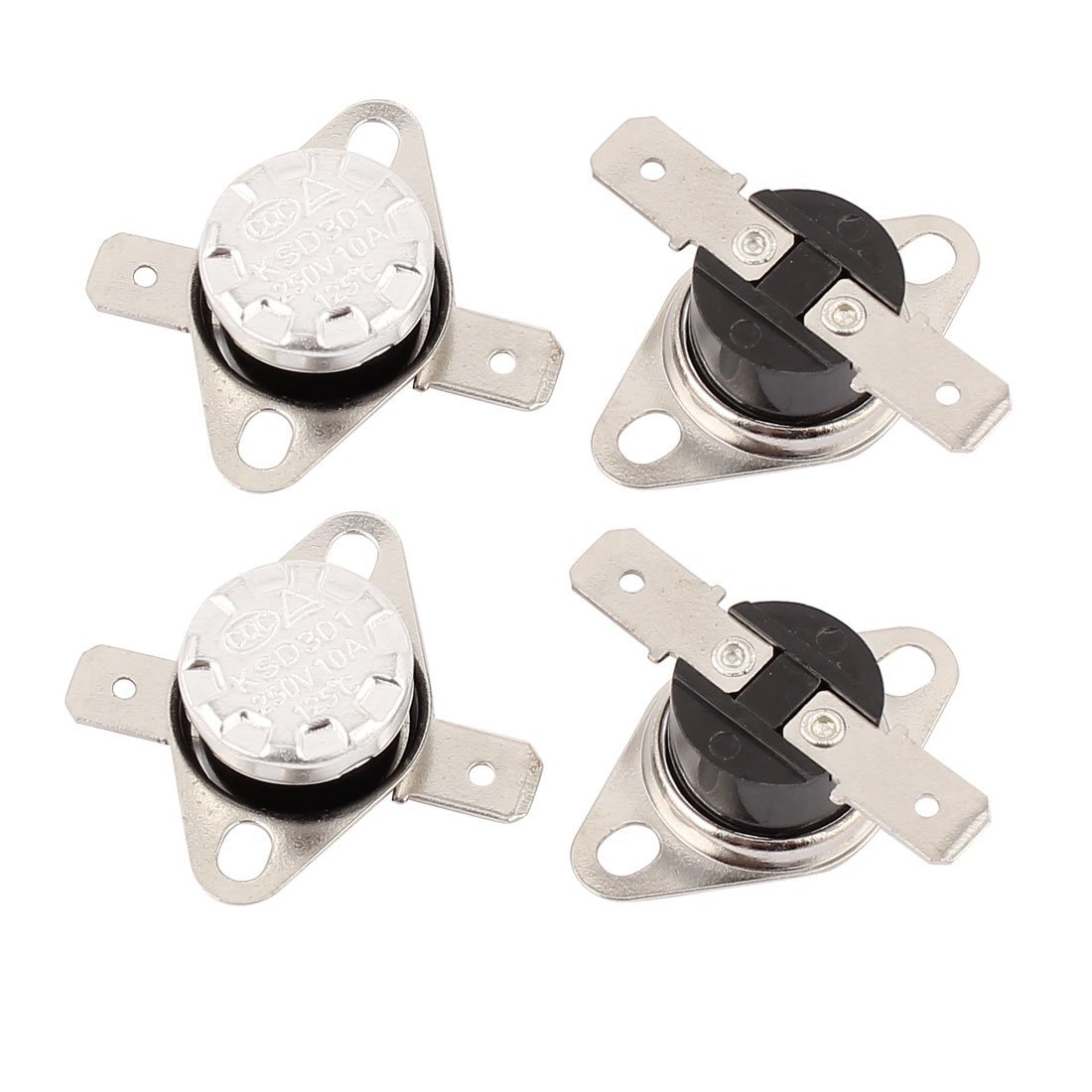

Product Name Temperature Switch;Model KSD301;Action Type NC(Normal Close)
Action Temperature 125C/257F;Voltage AC 250V 10A;Circuit Resistance 50 Mohm
Insulation Resistance 100 Mohm;Withstand Voltage AC1500V/ minute;Size 3.4 x 3.2 x 1.2cm / 1.3" x 1.2" x 0.5(L*W*H)
Mounting Hole Dia 5 x 3.5mm(L*W) 1.5mm;Mounting Hole Center Distance 23mm/0.9", 25mm/1";Material Metal
Weight 21g;Package 4 x Temperature Switch
